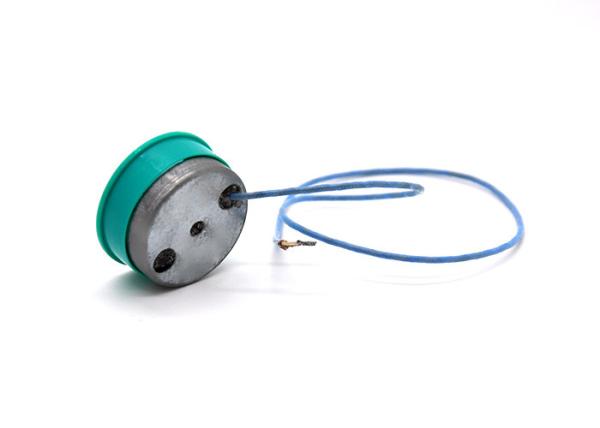

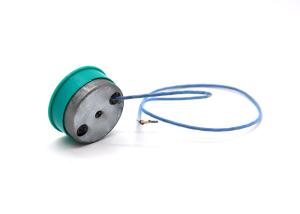

180KHz IP65 PBT Ultrasonic Transducer For Obstacle Avoidance

Name: 180KHz IP65 PBT Ultrasonic Transducer For Obstacle Avoidance
Brand: Yujie
Price: 1 USD

Brand Name : Yujie

Model Number : KQ180KH-1

Certification : ISO9001

Place of Origin : China

MOQ : 50 Piece/Pieces

Price : Negotiable

Payment Terms : Western Union, T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 3~20 days

Packaging Details : carton 22x22x18cm

Frequency : 180khz

Housing material : PBT

Diameter : 28mm

Height : 12.2mm

Application : For Level Measurement

Port : Shenzhen

Contact Now

PBT Housing Ultrasonic Transducer For Obstacle Avoidance, 180KHz Ultrasonic Waterproof Sensor

Features:

1) Rugged sealed construction

2) Cylindrical design allows for installation in various applications

Specifications:

Model	KQ180KH -1
Resonance frequency(kHz)	180KHZ±4%
Bandwidth(-6dB)	>100 mv
General sensitivity 0 dB=250 Vp-p; Period:50; Distance:30cm	0.10—2M
Detection range	<0.10M
Launch wave beam angle(-3dBFull-angle)	7±1°
Static capacitance	450PF±20%
Minimum parallel impedance	350Ω±30%
Max operation voltage Pulse(duty-cycle 2%)	<500V
Operation temperature	-20～70℃
Protection level	IP65
Housing material	PBT

180KHz IP65 PBT Ultrasonic Transducer For Obstacle Avoidance

All specification taken typical at 25℃

Applications:

. Level measurement

. Automation control

. Proximity

. Obstacle avoidance

. Robotics

Admittance curve

180KHz IP65 PBT Ultrasonic Transducer For Obstacle Avoidance

Sensitivity Test

Transmitting voltage: 250Vp-p; Period: 50; Distance: 30cm

180KHz IP65 PBT Ultrasonic Transducer For Obstacle Avoidance

Angle of direction curve

180KHz IP65 PBT Ultrasonic Transducer For Obstacle Avoidance
